JC Series Electric Pump (with Controller)

1. Complete specifications, stable pressure, and strong oil adaptability.

2. Equipped with liquid level and pressure signals for more automated operation.

3. The gear pump head adopts a gear grinding process for better product durability.

4. Built-in pressure gauge design makes the product more aesthetic.

5. Equipped with a control board to set oiling/interval times and provide low oil/pressure alarms.

Applications: Lubrication for agricultural machinery, etc.

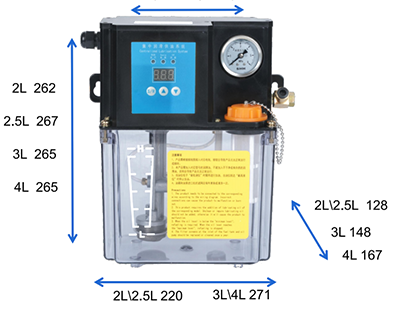

2L、2.5L: Mounting Hole Spacing: 200 x Φ6

3L、4L: Mounting Hole Spacing: 200 x Φ6 or 220 x Φ6

    /wp-content/uploads/2025/02/1-1-1.png
  • JC Series Electric Pump (with Controller)
Detail drawing
    /wp-content/uploads/2025/02/1-1-1.png
  • JC Series Electric Pump (with Controller)
Add to Cart Contact us

Zhuji Huabei Lubrication  Machinery Co., Ltd. Product parameters Zhuji Huabei Lubrication  Machinery Co., Ltd. Feedback

Technical Parameters

Working Voltage

DC24V

Rated Power

35W

Nominal Pressure

4.0MPa

Tank Capacity

2L、2.5L、3L、4L

Working Medium

000#100#Lubricating Grease

Applicable Temperature

-40℃~70℃

Pressure Switch

Optional

Liquid Level Switch

Optional

JC Series Electric Pump (with Controller)
