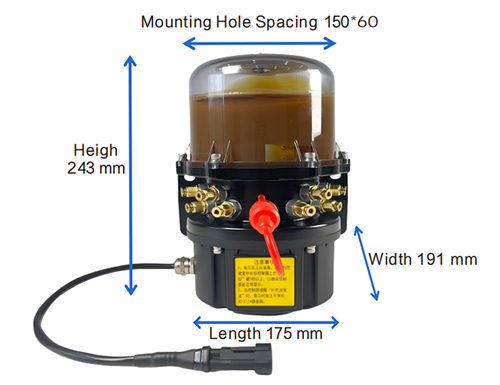

HB-QC13 Multi-line Lubrication Piston Pump
1. One-piece die-cast aluminum alloy housing provides high strength and light weight.
2. A built-in grease stirrer in the tank keeps the grease more uniform.
3. Selectable plunger quantity (1–12) covers a wider range of applications.
4. The 1L tank design is compact and lightweight, reducing the risk of grease deterioration.
5. Protection rating up to IP67 (electrical parts) for safer use.
6. Low-power brushless motor delivers longer service life and greener operation.
Applications: Vehicle chassis.
-
/wp-content/uploads/2026/08/1-3.png
Product parameters
Feedback
| Technical Parameters | |
| Model | HB-QC13 |
| Rated Voltage | DC24V/12V |
| Rated Power | 4W |
| Rated Pressure | 10MPa |
| Reservoir Capacity | 1L |
| Working Medium | NLGl 1,0,00 EP Lithium Grease |
| Applicable Temperature | -40°C～70°C |
| Control Method | External Programmable Controller |
| Interval Time | 0.5~24h(Adjustable,±0.5h per step) |
| Monitoring Function | System Abnormal Alarm |
| Refilling Method | Dedicated Grease Gun |
| Others | Optional 12 Outlets |
